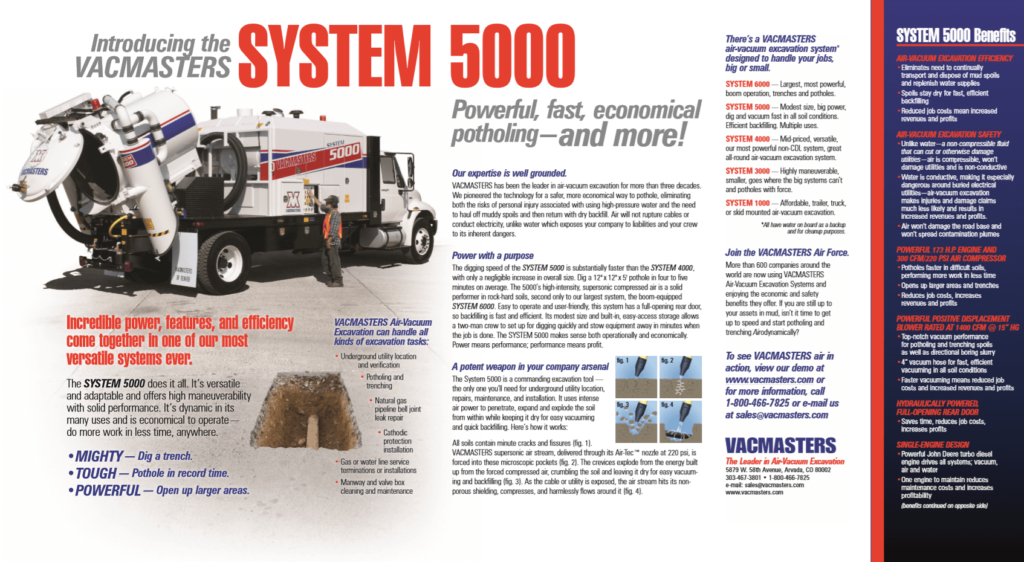

2014 Vac truck low miles, well maintained, garage kept, ready to work!!SYSTEM 5000 Specifications: The digging speed of the SYSTEM 5000 is substantially faster than the SYSTEM 4000, with only a negligible increase in overall size. Dig a 12″ x 12″ x 5′ pothole in four to five minutes on average. The 5000’s high-intensity, supersonic compressed air is a solid performer in rock-hard soils, second only to our largest system, the boom-equipped SYSTEM 6000. Easy to operate and user-friendly, this system has a full-opening rear door, so backfilling is fast and efficient. Its modest size and built-in, easy-access storage allows a two-man crew to set up for digging quickly and stow equipment away in minutes when the job is done. The SYSTEM 5000 makes sense both operationally and economically.
Power means performance; performance means profit.The System 5000 is a commanding excavation tool —the only one you’ll need for underground utility location, repairs, maintenance, and installation. It uses intense air power to penetrate, expand and explode the soil from within while keeping it dry for easy vacuuming and quick backfilling.POWER SOURCE: Engine Type: 6-Cylinder Turbo Diesel, Model: John Deere Model 6068H285, Power Rating: 173 H.P., Fuel System: Interconnected to truck system, Power Transfer: Direct belt driveOPERATIONAL DATA: Vacuum: 1400 CFM, 15” Hg. 4” hose, Compressor: 300 CFM @ 220 PSI (Air Lance), 300 CFM @ 100 PSI (Air Tools), High-Pressure Water: 0–3,000 PSI @ 3 GPM, Low-Pressure Water: 0–1000 PSI for clean-up.TANK CAPACITIES: 550-Gallon spoils tank with hydraulic hoist and full-opening rear door, 85-gallon water tank.
OPERATOR CONTROL PANEL INSTRUMENTATION: Fully Supervised, Automatic Shut-Down: Engine RPM, temperature, oil pressure, Compressor air pressure, temperature. DIMENSIONS and WEIGHTS: Length: 29′ 9″, Width: 8′ 0″, Height: 11′ 2″, GVW: 33,000, Empty Weight (lbs.) 26,320 Standard Configuration.Standard Equipment: (2) Retractable Air Compressor Hose Reels (high and low pressure), Fiberglass Air Lance w/Air-Tec™ Nozzle, (2) Underbody Storage Tubes for Vacuum Hose, (2) Underbody Storage Boxes (18″H x 60″L x 18″W), L.E.D. Traffic Direction Board, Digging Shield, Jackhammer and Tamper Holsters, High-Pressure Water Wand, Low-Pressure Water Wash-Down Wand, Winterizing Kit for water system, (2) Flashing Beacons, (1) Cross body Storage Box (22″ H x 96″ L x 22″W), (1) Cross body Storage Box (12″ H x 96″ L x 12″W), Work lights with Rear 12V DC Outlet and Spotlight.
